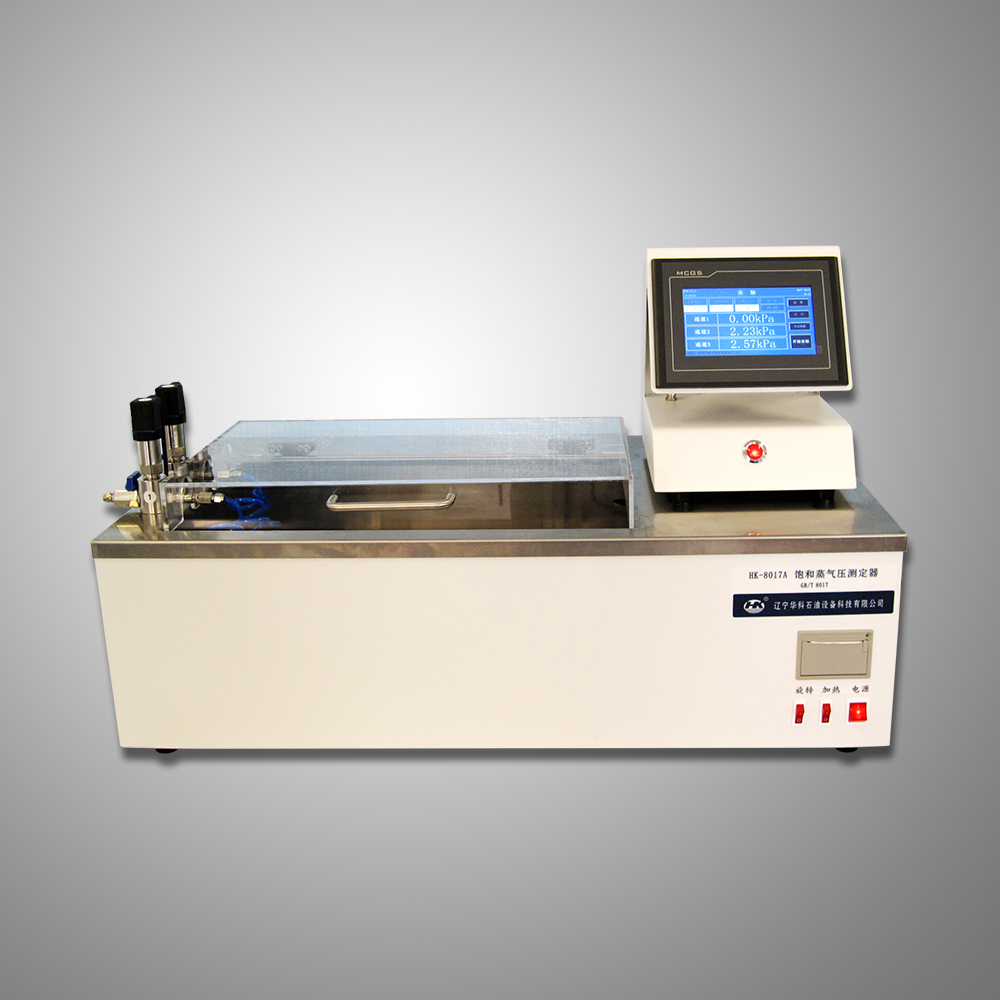

HK-8017A Automatic Reid Vapor Pressure Bath

Overview

    HK-8017A Automatic Reid Vapor Pressure Bath conforms to ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).It used for testing the vapor pressure (Because the external atmospheric pressure is counteracted by the atmospheric pressure initially present in the vapor chamber,the Reid vapor pressure is an absolute pressure at 37.8℃(100℉) in kilopascals (pounds-force per square inch).The Reid vapor pressure differs from the true vapor pressure of the sample due to some small sample vaporization and the presence of water vapor and air in the confined space) of gasoline,volatile crude oil,and other volatile petroleum products.

Features

1. Equipped with a 0.1-level pressure transmitter, entrance module analyzes the pressure signal, quick connector

2. Reserve the calibration pressure interface, connect pressure gauge or differential pressure gauge after calibration

3. Touch screen operation,judge the end point

4. Built-in printer







Technical parameters

1. Rated voltage:AC 220V±10% 50Hz

2. Heating Power:1500W

3. Temperature point:37.8℃±0.1℃

4. Temperature sensor:Pt100(Platinum resistor)

5. Vapor pressure bombs:Two groups

6. Ambient requirements:Temperature 10~50℃;Humidity≤85%
